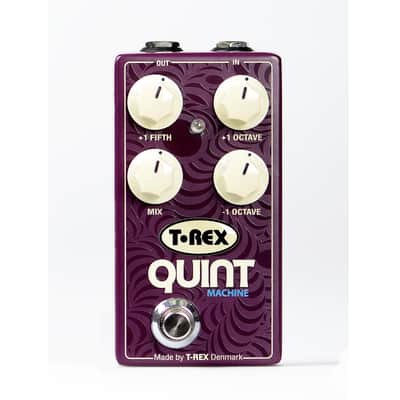

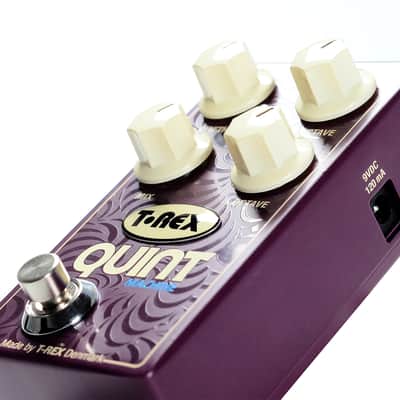

HIGHLY TUNABLE OCTAVES + FIFTH
Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.
A WHOLE NEW WORLD OF SONIC POSSIBILITIES
• Octave up, octave down, 5th up
• Individual volume controls, plus master mix
• Ultra-fast polyphonic tracking
• Replicate organ, synth or 12-string sound
• Play power chords on a single note
TECH SPECS
Input impedance @ 1KHz: > 1M Ohm
Output impedance @ 1KHz: < 1K Ohm
Power supply: 9VDC (T-Rex FuelTank)
Minimum power supply voltage: 8VDC
Maximum power supply voltage: 12,5VDC
Current draw @ 9VDC: 145 mA
Maximum input signal Vp-p: 3Vp-p
External connectors: Input jack, output jack, 9VDC jack
Controls: On/off switch, mix, +1 octave, -1 octave, +1 fifth
Pedal size incl. knobs (W x H x D): 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
Weight excl. packaging: 0,21 kg / 7,4 oz
Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.
A WHOLE NEW WORLD OF SONIC POSSIBILITIES
• Octave up, octave down, 5th up
• Individual volume controls, plus master mix
• Ultra-fast polyphonic tracking
• Replicate organ, synth or 12-string sound
• Play power chords on a single note
TECH SPECS
Input impedance @ 1KHz: > 1M Ohm
Output impedance @ 1KHz: < 1K Ohm
Power supply: 9VDC (T-Rex FuelTank)
Minimum power supply voltage: 8VDC
Maximum power supply voltage: 12,5VDC
Current draw @ 9VDC: 145 mA
Maximum input signal Vp-p: 3Vp-p
External connectors: Input jack, output jack, 9VDC jack
Controls: On/off switch, mix, +1 octave, -1 octave, +1 fifth
Pedal size incl. knobs (W x H x D): 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
Weight excl. packaging: 0,21 kg / 7,4 oz
